DSMS KItem Schema

DSMS KItem Schema#

A Kitem has several properties (pydantic Fields, simply referenced as Fields in the following) which enable it to handle data effectively. This section briefly describes the properties a Kitem can consist of, or in simple words, the schema of a KItem.

The schema contains complex types and references, indicating an advanced usage scenario where various objects (like KItems and their properties) are interconnected. It also includes customizations like optional and default values, arrays of references, and conditional formats (e.g., UUID formats).

KItem Fields#

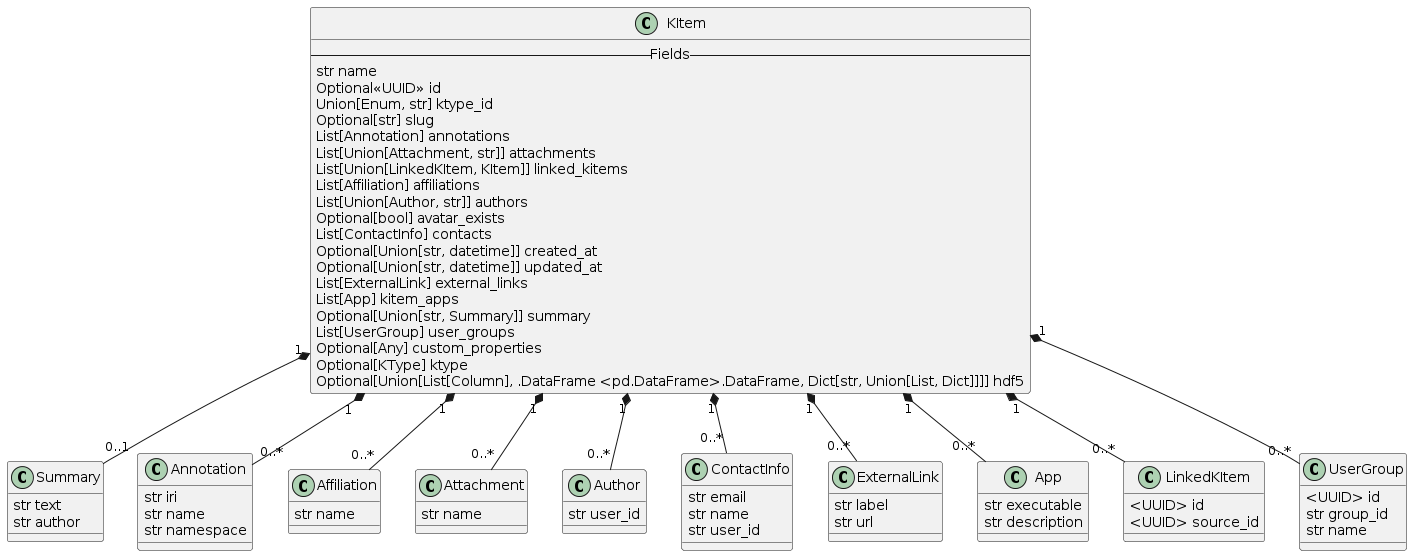

kitem_schema_uml

Field Name	Description	Type	Default	Property Namespace	Required / Optional
Name	Human-readable name of the KItem.	string	Not Applicable	`name`	Required
ID	ID of the KItem	Union[UUID, string]	Not Applicable	`id`	Optional
Slug	A unique slug identifier for the KItem, minimum of 4 characters.	string	`None`	`slug`	Optional
Ktype ID	The type ID of the KItem	Union[Enum, string]	Not Applicable	`ktype_id`	Required
Created At	Timestamp of when the KItem was created.	Union[string, datetime]	`None`	`created_at`	Automatically generated
Updated At	Timestamp of when the KItem was updated.	Union[string, datetime]	`None`	`updated_at`	Automatically generated
Avatar	The avatar of the KItem.	Union[Avatar, Dict[str, Any]]	`None`	`avatar`	Optional
Avatar Exists	Whether the KItem holds an avatar or not.	boolean	`False`	`avatar_exists`	Automatically generated
KItemCustomPropertiesModel	A set of custom properties related to the KItem.	Any	`None`	`custom_properties`	Optional
Summary	A brief human-readable summary of the KItem	string	`None`	`summary`	Optional
Apps	A list of applications associated with the KItem	List[App]	`[ ]`	`apps`	Optional
Annotations	A list of annotations related to the KItem	List[Annotation]	`[ ]`	`annotations`	Optional
Affiliations	A list of affiliations associated with the KItem	List[Affiliation]	`[ ]`	`affiliations`	Optional
Contacts	Contact information related to the KItem	List[ContactInfo]	`[ ]`	`contacts`	Optional
External Links	A list of external links related to the KItem	List[ExternalLink]	`[ ]`	`external_links`	Optional
Attachments	A list of file attachments associated with the KItem	List [Union [Attachment], string]	`[ ]`	`attachments`	Optional
Dataframe	Dataframe associated with the KItem, e.g. a time series	Union[List[Column], pd.DataFrame, Dictionary[string, Union[List, Dictionary]]]	`None`	`dataframe`	Optional
Linked KItems	List of other KItems linked to this KItem	List[Union[LinkedKItem, "KItem"]]	`[ ]`	`linked_kitems`	Optional
User Groups	User groups with access to this KItem	List[UserGroup]	`[ ]`	`user_groups`	Optional

Example Usage#

item = KItem(
    name="Glass Bending machine 01",
    slug="1234",
    ktype_id="Testing Machine",
    custom_properties={"location": "Room01", "max_force": "100Pa"},
    summary="This is a summary",
    apps=[
        {"executable": "my_analysis_file",
        "title": "Analysis",
        "description": "Analysis the tensile strength from machine data"}
    ],
    annotations=["http://example.org/sample_kitem/annotation"],
    affiliations=[
        {"name": "Institute ABC"}
    ],
    contacts=[
        {"name": "John Doe", "email": "john.doe@example.com"}
    ],
    external_links=[
        {"label": "Project Website", "url": "https://example.com"}
    ],
    attachments=["research_data.csv"],
    linked_kitems=[another_kitem],
    user_groups=[
        {"group_id": "33305", "name": "DigiMaterials"}
    ]
)

App Fields#

Sub-Property Name	Description	Type	Default	Property Namespace	Required/Optional
KItem App ID	ID of the KItem App	integer	`None`	`kitem_app_id`	Automatically generated
Executable	Name of the executable	string	`None`	`executable`	Required
Title	Title of the application	string	`None`	`title`	Required
Description	Description of the application	string	`None`	`description`	Required
Tags	Tags related to the application	Dict	`None`	`tags`	`tags`
Additional properties	Additional properties related to the application	Additional Properties	`None`	`additional_properties`	Optional

Example Usage#

sample_kitem.apps = [{
    "executable": "my_application",
    "title": "My Application",
    "description": "My Application for analysis.",
}]

Additional Properties Fields#

Sub-Property Name	Description	Type	Default	Property Namespace	Required/Optional
Trigger Upon Upload	Whether the application is triggered when an attachment is uploaded	boolean	`False`	`triggerUponUpload`	Optional
Trigger Upon Extension	File extensions for which the upload shall be triggered	List[string]	`None`	`triggerUponUploadFileExtensions`	Optional

Example Usage#

item.apps = [
        {
            "executable": "my_yaml_file",
            "title": "Data2RDF",
            "additional_properties": {
                "triggerUponUpload": True,
                "triggerUponUploadFileExtensions": [".csv"],
            },
        }
    ]

Annotation Fields#

Sub-Property Name	Description	Type	Default	Property Namespace	Required/Optional
IRI	IRI of the annotation	string	Not Applicable	`iri`	Required
Name	Name of the annotation	string	Not Applicable	`name`	Required
Namespace	Namespace of the annotation	string	Not Applicable	`namespace`	Required

Example Usage#

sample_kitem.annotations = [
    "http://example.org/TensileTest"
]

sample_kitem.annotations = [
    {
        "iri":"http://example.org/TensileTest",
        "name": "TensileTest",
        "namespace": "http://example.org"
    }
]

Affiliation Fields#

Sub-Property Name	Description	Type	Default	Property Namespace	Required/Optional
Name	Name of the affiliation	string	Not Applicable	`name`	Required

Example Usage#

sample_kitem.affiliations = [{"name": "Research BAC"}]

Avatar Fields#

Sub-Property Name	Description	Type	Default	Property Namespace	Required/Optional
File	The file path to the image or PIL.Image object when setting a new avatar is set	Union[string, PIL.Image]	`None`	`file`	Optional
Include QR code	Include QR code in the image	bool	`False`	`include_qr`	Optional

Example Usage#

sample_kitem.avatars = [
    {
        "file": "my_avatar.jpg",
        "include_qr": True
    }
]

ContactInfo Fields#

Sub-Property Name	Description	Type	Default	Property Namespace	Required/Optional
Email	Email of the contact person	string	Not Applicable	`email`	Required
Name	Name of the contact person	string	Not Applicable	`name`	Required
User Id	User ID of the contact person	string (UUID)	`None`	`user_id`	Optional

Example Usage#

sample_kitem.contacts = [
    {
        "email": "research.abc@gmail.com",
        "name": "project01@research.abc.de",
        "user_id":"33f24ee5-2f03-4874-854d-388af782c4c3"
    }
]

ExternalLink Fields#

Sub-Property Name	Description	Type	Default	Property Namespace	Required/Optional
Label	Label of the external link	string	Not Applicable	`label`	Required
Url	URL of the external link	string , format: URI, minLength: 1	Not Applicable	`url`	Required

Example Usage#

sample_kitem.external_links = [
    {
        "label": "project link",
        "url": "www.projectmachine01.com"
    }
]

Attachment Fields#

Sub-Property Name	Description	Type	Default	Property Namespace	Required/Optional
Name	File name of the attachment	string	Not Applicable	`name`	Required
Content	Content of the attachment	string	`None`	`content`	Optional

Example Usage#

sample_kitem.attachments = ["research_data.csv"]

sample_kitem.attachments = [
    {
        "name": "research_data.csv",
        "content": "A,B,C\n1,2,3\n4,5,6"
    }
]

Column Fields#

Sub-Property Name	Description	Type	Default	Property Namespace	Required/Optional
Name	Name of the column	string	Not Applicable	`name`	Required
Column ID	ID of the column	integer	Not Applicable	`column_id`	Required

Example Usage#

sample_kitem.dataframe = {
    "A": [1, 4],
    "B": [2, 5],
    "C": [3, 6]
}

LinkedKItem Fields#

Sub-Property Name	Description	Type	Default	Property Namespace	Required/Optional
Id	ID of the KItem to be linked	string (UUID)	`None`	`id`	Required
Source Id	Source Id of the KItem which has been linked	string (UUID)	`None`	`source_id`	Required

Example Usage#

sample_kitem.linked_kitems = [
    {
        "id": "3e894d2c-d1a5-42ca-b6e2-cbbc09e0e686", # id of the target KItem
    }
]

sample_kitem.linked_kitems = [
    another_kitem
]

UserGroup Fields#

Sub-Property Name	Description	Type	Default	Property Namespace	Required/Optional
Id	KItem ID related to the KItem property	string (UUID)	`None`	`id`	Required
Group Id	ID of the user group	string	`None`	`group_id`	Required
Name	Name of the user group	string	`None`	`name`	Required

Example Usage#

sample_kitem.user_groups = [
    {
        "group_id": "33305",
        "name": "22205"
    }
]

KItemCustomPropertiesModel#

Sub-Property Name	Description	Type	Default	Property Namespace	Required/Optional
Sections	Sections of custom properties	List of CustomPropertiesSection	`[]`	`sections`	Optional

CustomPropertiesSection Fields#

Sub-Property Name	Description	Type	Default	Property Namespace	Required/Optional
Id	Id of the section	string or null	`None`	`id`	Optional
Name	Name of the section	string	`None`	`name`	Required
Entries	Entries of the section	List of Entry	`[]`	`entries`	Optional

Entry Fields#

Sub-Property Name	Description	Type	Default	Property Namespace	Required/Optional
Id	Id of the entry	string	`None`	`id`	Optional
Type	Type of the entry	Widget or null	`None`	`type`	Optional
Label	Label of the entry	string	`None`	`label`	Required
Value	Value of the entry	any or null	`None`	`value`	Optional
Measurement Unit	Measurement unit of the entry	MeasurementUnit or null	`None`	`measurementUnit`	Optional
Relation Mapping	Relation mapping of the entry	RelationMapping or null	`None`	`relationMapping`	Optional
Required	Required input	boolean or null	`False`	`required`	Optional
KItem ID	ID of the knowledge item	string or null	`None`	`kitemId`	Optional

MeasurementUnit Fields#

Sub-Property Name	Description	Type	Default	Property Namespace	Required/Optional
IRI	IRI of the measurement unit	string or null	`None`	`iri`	Optional
Label	Label of the measurement unit	string or null	`None`	`label`	Optional
Symbol	Symbol of the measurement unit	string or null	`None`	`symbol`	Optional
Namespace	Namespace of the measurement unit	string or null	`None`	`namespace`	Optional

RelationMapping Fields#

Sub-Property Name	Description	Type	Default	Property Namespace	Required/Optional
IRI	IRI of the annotation	string or null	`None`	`iri`	Optional
Type	Type of the annotation	RelationMappingType or null	`None`	`type`	Optional
Class IRI	Class IRI for object properties	string or null	`None`	`classIri`	Optional

RelationMappingType Fields#

Value	Description
`object_property`	Object property type
`data_property`	Data property type
`annotation_property`	Annotation property type
`property`	General property type

Widget Fields#

Value	Description
`Text`	Text input widget
`File`	File input widget
`Textarea`	Multiline text input widget
`Number`	Numeric input widget
`Slider`	Slider input widget
`Checkbox`	Checkbox input widget
`Select`	Dropdown select widget
`Radio`	Radio button widget
`Knowledge item`	Knowledge item selector widget
`Multi-select`	Multi-select widget
