DSMS KItem Schema#

A Kitem has several properties (pydantic Fields, simply referenced as Fields in the following) which enable it to handle data effectively. This section briefly describes the properties a Kitem can consist of, or in simple words, the schema of a KItem.

The schema contains complex types and references, indicating an advanced usage scenario where various objects (like KItems and their properties) are interconnected. It also includes customizations like optional and default values, arrays of references, and conditional formats (e.g., UUID formats).

KItem Fields#

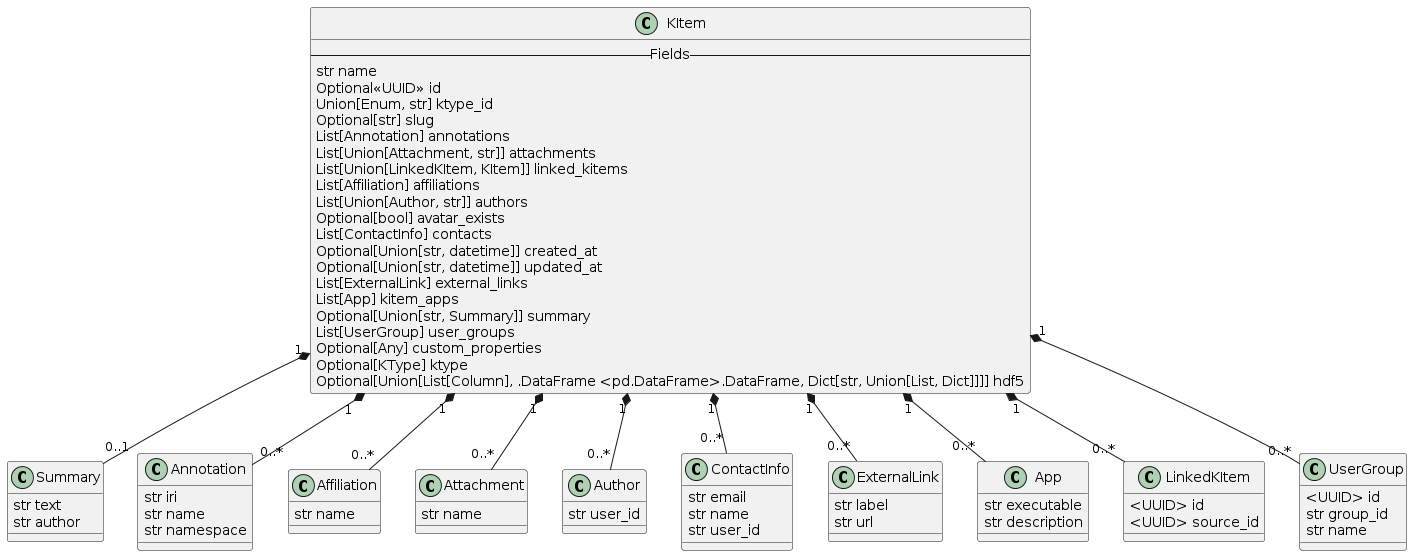

kitem_schema_uml

Field Name Description Type Default Property Namespace Required / Optional
Name Human-readable name of the KItem. string Not Applicable name Required
ID ID of the KItem Union[UUID, string] Not Applicable id Optional
Slug A unique slug identifier for the KItem, minimum of 4 characters. string None slug Optional
Ktype ID The type ID of the KItem Union[Enum, string] Not Applicable ktype_id Required
Created At Timestamp of when the KItem was created. Union[string, datetime] None created_at Automatically generated
Updated At Timestamp of when the KItem was updated. Union[string, datetime] None updated_at Automatically generated
Avatar The avatar of the KItem. Union[Avatar, Dict[str, Any]] None avatar Optional
Avatar Exists Whether the KItem holds an avatar or not. boolean False avatar_exists Automatically generated
Custom Properties A set of custom properties related to the KItem. Any None custom_properties Optional
Summary A brief human-readable summary of the KItem string None summary Optional
KItem Apps A list of applications associated with the KItem List[App] [ ] kitem_apps Optional
Annotations A list of annotations related to the KItem List[Annotation] [ ] annotations Optional
Affiliations A list of affiliations associated with the KItem List[Affiliation] [ ] affiliations Optional
Contacts Contact information related to the KItem List[ContactInfo] [ ] contacts Optional
External Links A list of external links related to the KItem List[ExternalLink] [ ] external_links Optional
Attachments A list of file attachments associated with the KItem List [Union [Attachment], string] [ ] attachments Optional
Dataframe Dataframe associated with the KItem, e.g. a time series Union[List[Column], pd.DataFrame, Dictionary[string, Union[List, Dictionary]]] None dataframe Optional
Linked KItems List of other KItems linked to this KItem List[Union[LinkedKItem, "KItem"]] [ ] linked_kitems Optional
User Groups User groups with access to this KItem List[UserGroup] [ ] user_groups Optional

Example Usage#


item = KItem(
    name="Glass Bending machine 01",
    slug="1234",
    ktype_id="Testing Machine",
    custom_properties={"location": "Room01", "max_force": "100Pa"},
    summary="This is a summary",
    kitem_apps=[
        {"executable": "my_analysis_file",
        "title": "Analysis",
        "description": "Analysis the tensile strength from machine data"}
    ],
    annotations=["http://example.org/sample_kitem/annotation"],
    affiliations=[
        {"name": "Institute ABC"}
    ],
    contacts=[
        {"name": "John Doe", "email": "john.doe@example.com"}
    ],
    external_links=[
        {"label": "Project Website", "url": "https://example.com"}
    ],
    attachments=["research_data.csv"],
    linked_kitems=[another_kitem],
    user_groups=[
        {"group_id": "33305", "name": "DigiMaterials"}
    ]
)

App Fields#

Sub-Property Name Description Type Default Property Namespace Required/Optional
KItem App ID ID of the KItem App integer None kitem_app_id Automatically generated
Executable Name of the executable string None executable Required
Title Title of the application string None title Required
Description Description of the application string None description Required
Tags Tags related to the application Dict None tags tags
Additional properties Additional properties related to the application Additional Properties None additional_properties Optional

Example Usage#

sample_kitem.kitem_apps = [{
    "executable": "my_application",
    "title": "My Application",
    "description": "My Application for analysis.",
}]

Additional Properties Fields#

Sub-Property Name Description Type Default Property Namespace Required/Optional
Trigger Upon Upload Whether the application is triggered when an attachment is uploaded boolean False triggerUponUpload Optional
Trigger Upon Extension File extensions for which the upload shall be triggered List[string] None triggerUponUploadFileExtensions Optional

Example Usage#

item.kitem_apps = [
        {
            "executable": "my_yaml_file",
            "title": "Data2RDF",
            "additional_properties": {
                "triggerUponUpload": True,
                "triggerUponUploadFileExtensions": [".csv"],
            },
        }
    ]

Annotation Fields#

Sub-Property Name Description Type Default Property Namespace Required/Optional
IRI IRI of the annotation string Not Applicable iri Required
Name Name of the annotation string Not Applicable name Required
Namespace Namespace of the annotation string Not Applicable namespace Required

Example Usage#

sample_kitem.annotations = [
    "http://example.org/TensileTest"
]

sample_kitem.annotations = [
    {
        "iri":"http://example.org/TensileTest",
        "name": "TensileTest",
        "namespace": "http://example.org"
    }
]

Affiliation Fields#

Sub-Property Name Description Type Default Property Namespace Required/Optional
Name Name of the affiliation string Not Applicable name Required

Example Usage#

sample_kitem.affiliations = [{"name": "Research BAC"}]

Avatar Fields#

Sub-Property Name Description Type Default Property Namespace Required/Optional
File The file path to the image or PIL.Image object when setting a new avatar is set Union[string, PIL.Image] None file Optional
Include QR code Include QR code in the image bool False include_qr Optional

Example Usage#

sample_kitem.avatars = [
    {
        "file": "my_avatar.jpg",
        "include_qr": True
    }
]

ContactInfo Fields#

Sub-Property Name Description Type Default Property Namespace Required/Optional
Email Email of the contact person string Not Applicable email Required
Name Name of the contact person string Not Applicable name Required
User Id User ID of the contact person string (UUID) None user_id Optional

Example Usage#

sample_kitem.contacts = [
    {
        "email": "research.abc@gmail.com",
        "name": "project01@research.abc.de",
        "user_id":"33f24ee5-2f03-4874-854d-388af782c4c3"
    }
]

Attachment Fields#

Sub-Property Name Description Type Default Property Namespace Required/Optional
Name File name of the attachment string Not Applicable name Required
Content Content of the attachment string None content Optional

Example Usage#

sample_kitem.attachments = ["research_data.csv"]

sample_kitem.attachments = [
    {
        "name": "research_data.csv",
        "content": "A,B,C\n1,2,3\n4,5,6"
    }
]

Column Fields#

Sub-Property Name Description Type Default Property Namespace Required/Optional
Name Name of the column string Not Applicable name Required
Column ID ID of the column integer Not Applicable column_id Required

Example Usage#

sample_kitem.dataframe = {
    "A": [1, 4],
    "B": [2, 5],
    "C": [3, 6]
}

LinkedKItem Fields#

Sub-Property Name Description Type Default Property Namespace Required/Optional
Id ID of the KItem to be linked string (UUID) None id Required
Source Id Source Id of the KItem which has been linked string (UUID) None source_id Required

Example Usage#

sample_kitem.linked_kitems = [
    {
        "id": "3e894d2c-d1a5-42ca-b6e2-cbbc09e0e686", # id of the target KItem
    }
]

sample_kitem.linked_kitems = [
    another_kitem
]

UserGroup Fields#

Sub-Property Name Description Type Default Property Namespace Required/Optional
Id KItem ID related to the KItem property string (UUID) None id Required
Group Id ID of the user group string None group_id Required
Name Name of the user group string None name Required

Example Usage#

sample_kitem.user_groups = [
    {
        "group_id": "33305",
        "name": "22205"
    }
]
