About DSMS-SDK

1. Overview

What is the DSMS SDK?

SDK stands for Software Development Kit. In our case, it is a Python-based package for the interaction with the DSMS. This means that all fundamental functionalities of the DSMS can be accessed through a Python interface now!

How does the SDK work?

Just install it on your local system via the pip command line interface:

pip install dsms-sdk

… and start connecting to your central DSMS instance remotely, e.g. by integrating it into your own Python scripts and packages

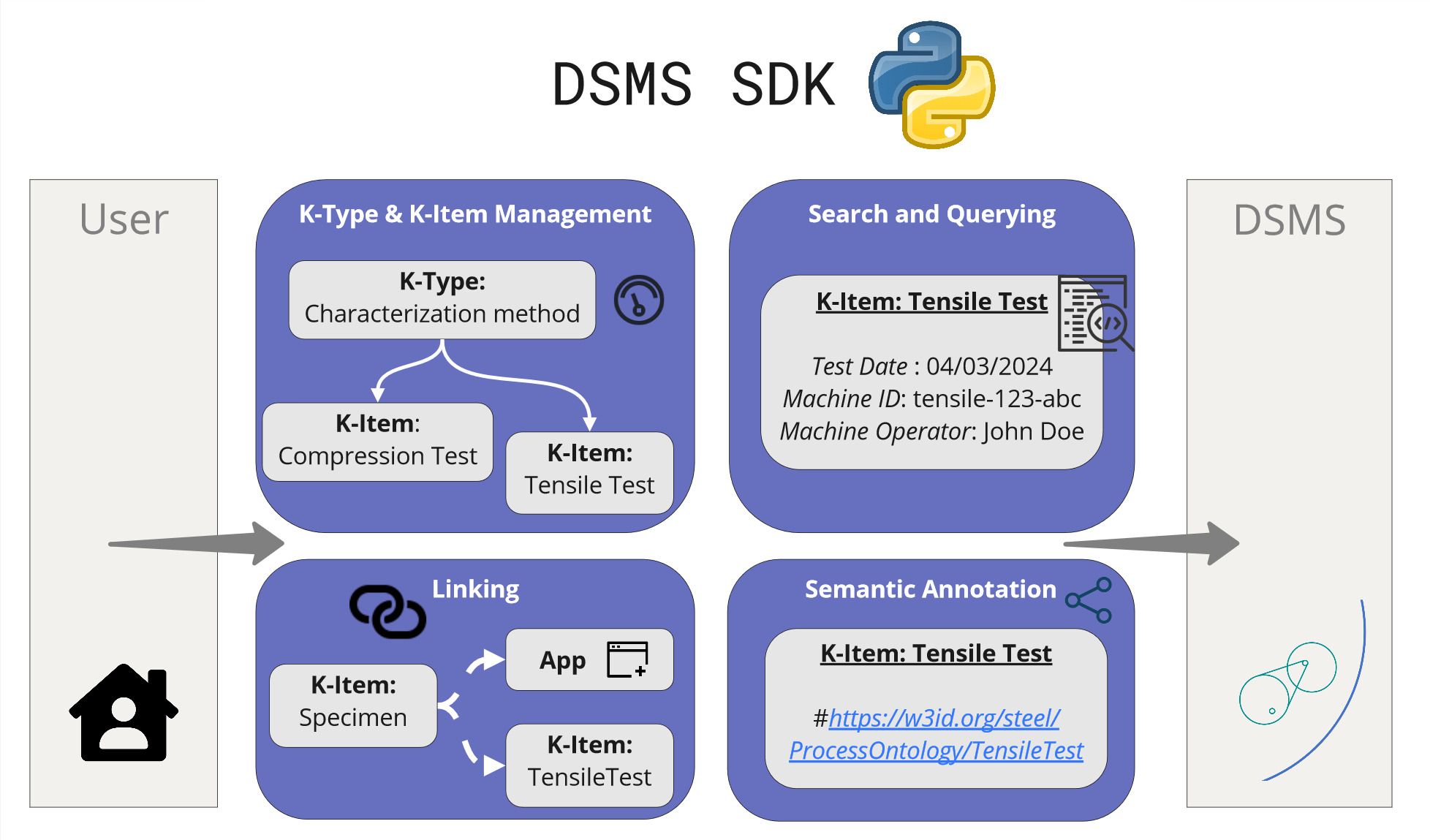

The SDK functionalities are listed below:

1. Managing Knowledge-Items.

2. Creating, updating and deleting meta data and properties, e.g. date, operator, material response data for a conducted tensile test.

3. Administrating authorship, contact information and supplementary information.

4. Semantic annotation of K-Items.

5. Conduct simple free-text searches and SPARQL queries.

6. Linking K-Items to other K-Items.

7. Linking Apps to K-Items, triggered, for example, during a file upload.

8. Performing simple file upload and download of file attachments.

9. Export of a knowledge (sub) graph into TTL/JSON-LD.

Click on the link to go to the Github repository of the Python based DSMS-SDK : Git repo

2. Installation

Installation and Setup Guide

How to install and setup the dsms-python-sdk.

Pre-Requisites

Before using DSMS-SDK make sure to register an account in a DSMS Instance of your choice. You could do this by sending an email to the following contacts:

• Yoav Nahshon (Fraunhofer Institute for Mechanics of Materials IWM)

• Matthias Büschelberger (Fraunhofer Institute for Mechanics of Materials IWM)

After following the above steps, you could use either of the two ways to install DSMS-SDK to your machine.

Compatibility

Please take the compability of the SDK version with the DSMS version into account:

SDK Version	DSMS Version
<2.0.0	<2.0.0
>=2.0.0, <3.0.0	>=2.0.0, <3.0.0
>=3.0.0, <3.0.4	>=3.0.0, <3.0.5
>=3.0.4, <3.1.0	>=3.0.5, <3.1.0
>=3.1.0, <3.2.2	>=3.1.0, <3.2.1
>=3.2.2	>=3.2.1

Method 1: Via PyPI

To install the DSMS Python SDK, you can use the Python Package Index (PyPI). Copy the below command to install DSMS SDK from PyPI:

pip install dsms-sdk

Method 2: Cloning Github Repo

Download and install on th8e local machine :

git clone git@github.com:MI-FraunhoferIWM/dsms-python-sdk.git
cd dsms-python-sdk
pip install .

Connecting to DSMS

You need to authenticate yourself to connect with dsms using the dsms-sdk Python package which can be done by following one of the below given steps:

1. Pick the DSMS host of your choice.

   The following are the instances of the DSMS you could choose from:

   • StahlDigital

   • KupferDigital

   • DiMAT

2. Authentication Options

   You can log into the DSMS core using one of the following methods:

   a. Pass as Keyword Arguments

   Directly pass your credentials (stored in a .env file) as keyword arguments when initializing the SDK.

   from dsms import DSMS
   dsms = DSMS(env="../.env")


   Then add the relevant information in the .env file for setting up the login with DSMS core via SDK. Here, we choose the stahldigital instance for demo:

   DSMS_HOST_URL = https://stahldigital.materials-data.space
   DSMS_USERNAME = {YOUR_USERNAME}
   DSMS_PASSWORD = {YOUR_PASSWORD}


   Now save the file and the user is ready to connect with DSMS-Core via SDK.

   b. Pass Config Variables while Initialization

   Use configuration variables during initialization. Use the getpass module for securely entering your password.

    import getpass
    from dsms import DSMS
    dsms_host = "https://stahldigital.materials-data.space"
    dsms_username = input("Enter your username: ")
    dsms_password = getpass.getpass("Enter your password: ")

    dsms = DSMS(host=dsms_host, username=dsms_username, password=dsms_password)


   c. Using Frontend and get token:

   The user can login in the DSMS instance of choice and then use the login token, which can be obtained by following the below steps from the DSMS frontend interface.

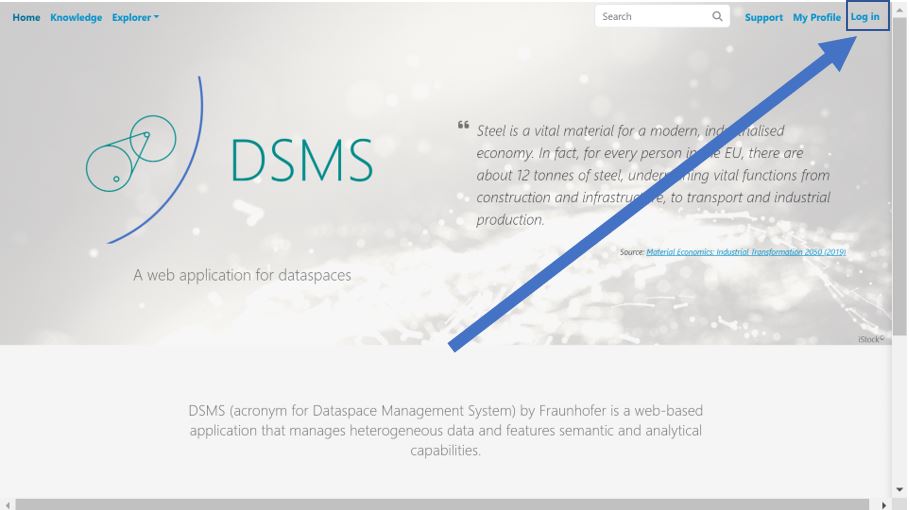

   Step 1: Login into the selected dataspace instance of your choice.

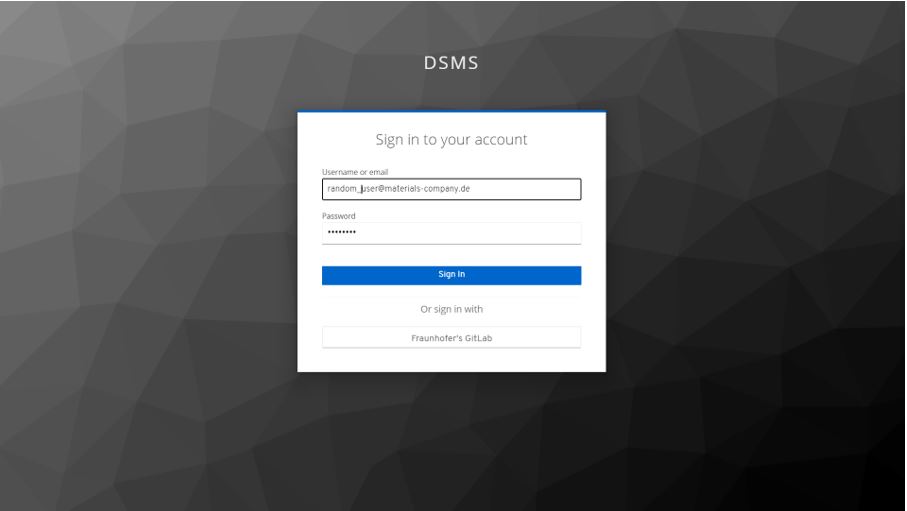

   Step 2: Enter your credentials

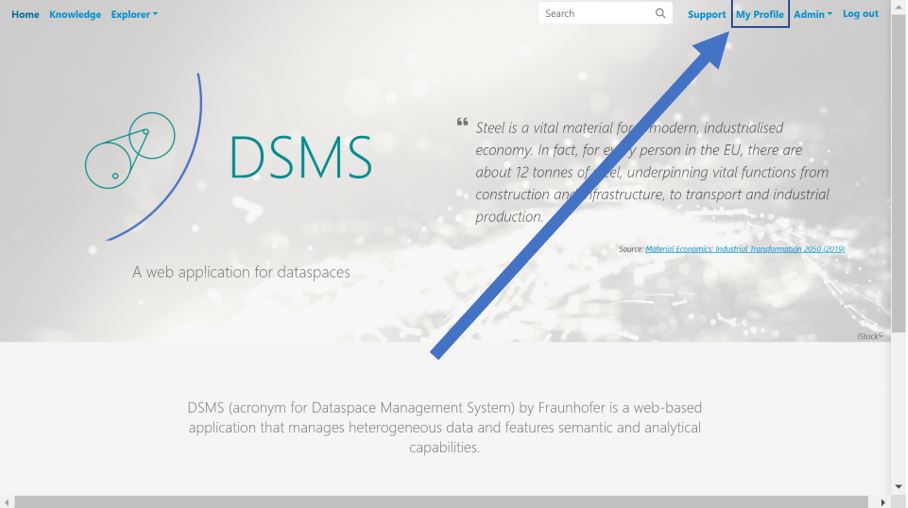

   Step 3: After logging in you will land up on the home page. Now proceed to the my profile option

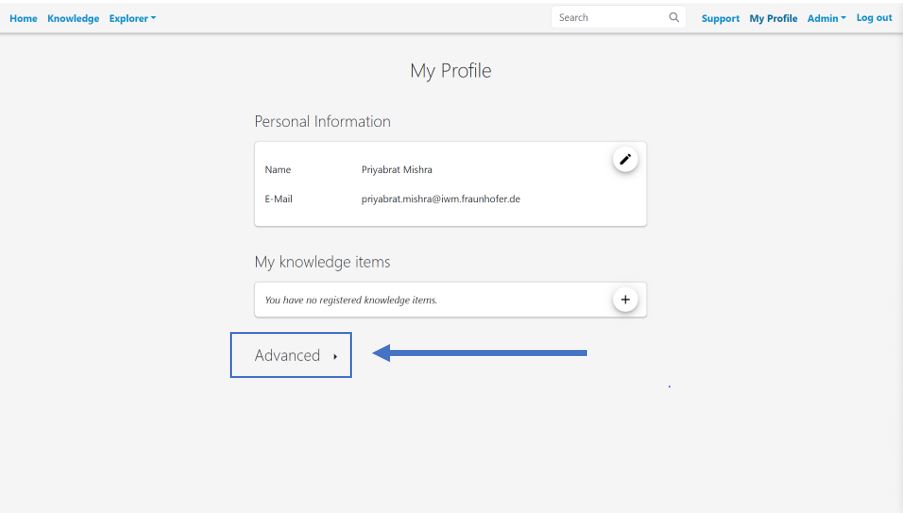

   Step 4: The my profile option should look something like below. Now click on Advanced.

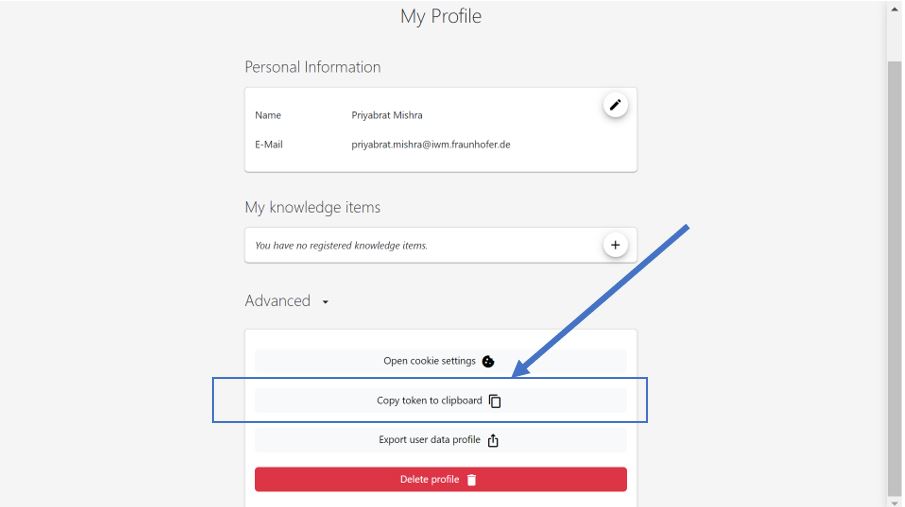

   Step 5: After landing up on Advanced section, click on the copy token to clipboard



   Step 6: Now the login token is in the clipboard. Now paste the copied login token from the frontend in the DSMS_TOKEN attribute of the .env file

   DSMS_HOST_URL = https://stahldigital.materials-data.space
   DSMS_TOKEN = {YOUR_COPIED_TOKEN}


Now you are ready to use dsms-sdk. Do check out the tutorials section to try out some basic examples on how to use dsms-sdk.

The next sections covers about the schema of fundamental classes crucial for users to know about DSMS when using the platform. Below given explains about the Schema of KItem and its associated properties in DSMS.

Now the next section gives a brief explanation about the Schema of Config class of DSMS and its associated properties in DSMS.
